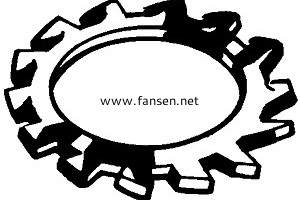

DIN7697A CONICAL SPRING WASHERS TYPE A 外齒鎖緊墊圈
|
Thread
|
M1.6
|
M2
|
M2.5
|
M3
|
M3.5
|
M4
|
M5
|
M6
|
M7
|
|
d1
|
1.7
|
2.2
|
2.7
|
3.2
|
3.7
|
4.3
|
5.3
|
6.4
|
7.4
|
|
d2
|
3.6
|
4.5
|
5.5
|
6
|
7
|
8
|
10
|
11
|
12.5
|
|
s
|
0.3
|
0.3
|
0.4
|
0.4
|
0.5
|
0.5
|
0.6
|
0.7
|
0.8
|
|
number of teeth
|
6
|
6
|
6
|
6
|
6
|
8
|
8
|
8
|
8
|
|
Thread
|
M8
|
M10
|
M12
|
M14
|
M16
|
M18
|
M20
|
M22
|
M24
|
|
d1
|
8.4
|
10.5
|
13
|
15
|
17
|
19
|
21
|
23
|
25
|
|
d2
|
15
|
18
|
20.5
|
24
|
26
|
30
|
33
|
36
|
38
|
|
s
|
0.8
|
0.9
|
1
|
1
|
1.2
|
1.4
|
1.4
|
1.5
|
1.5
|
|
number of teeth
|
8
|
9
|
10
|
10
|
12
|
12
|
12
|
14
|
14
|
