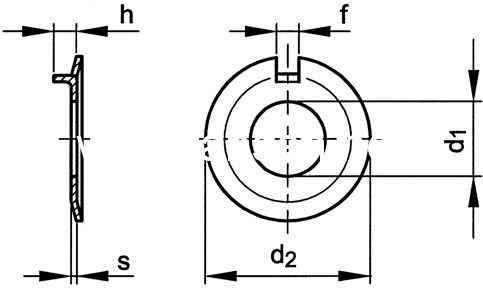

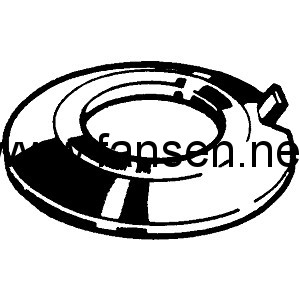

DIN432 External tap Washers 外舌止動墊圈
Thread | M3 | M3.5 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
d1 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | 10.5 | 12 | 15 | 17 | 19 | 21 | 23 | 25 |
d2 | 12 | 12 | 14 | 17 | 19 | 19 | 22 | 26 | 30 | 33 | 36 | 40 | 42 | 50 | 50 |
s | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 | 1 | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.6 | 1.6 | 1.6 |
f | 2.5 | 2.5 | 2.5 | 3.5 | 3.5 | 3.5 | 3.5 | 4.5 | 4.5 | 4.5 | 5.5 | 6.5 | 6.5 | 7.5 | 7.5 |
h≈ | 2 | 2 | 2 | 2.5 | 3 | 3 | 4 | 4 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 6.5 | 6.5 |
