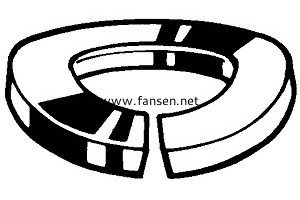

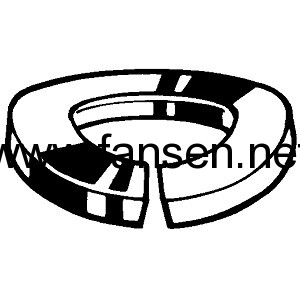

DIN128B Wave spring lock washers type B 波形彈墊
.png "圖片關鍵詞")
|
Thread size
|
M2
|
M2.5
|
M3
|
M4
|
M5
|
M6
|
M8
|
M10
|
M12
|
M16
|
M20
|
M24
|
|
Nominal Size
|
2
|
2.5
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
16
|
20
|
24
|
|

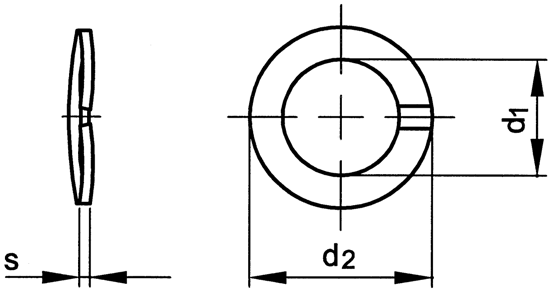

d1
|
2.1
|
2.6
|
3.1
|
4.1
|
5.1
|
6.1
|
8.1
|
10.2
|
12.2
|
16.2
|
20.2
|
24.5
|
|
d2
|
4.4
|
5.1
|
6.2
|
7.6
|
9.2
|
11.8
|
14.8
|
18.1
|
21.1
|
27.4
|
33.6
|
40
|
|
s
|
0.9
|
1.0
|
0.8
|
0.9
|
1.6
|
2
|
2.2
|
2.5
|
2.5
|
3.5
|
4
|
5
|
